DIALOCK IN FURNITURE DG2
DIALOCK WATCH PROTECTION
- Dialock Watch enables an open and freely accessible product presentation and ensures easy fitting and quick purchase decisions.
- Pre-assembled modules. Allows for quick and easy installation.
- Management in stand-alone, My Dialock Manager app or in the Dialock software, which will also be cloud-based in the future. Open times and alarm settings can be set via add-on with the My Dialock Manager app.
- Planned availability: Q1/2026
APPLICATION

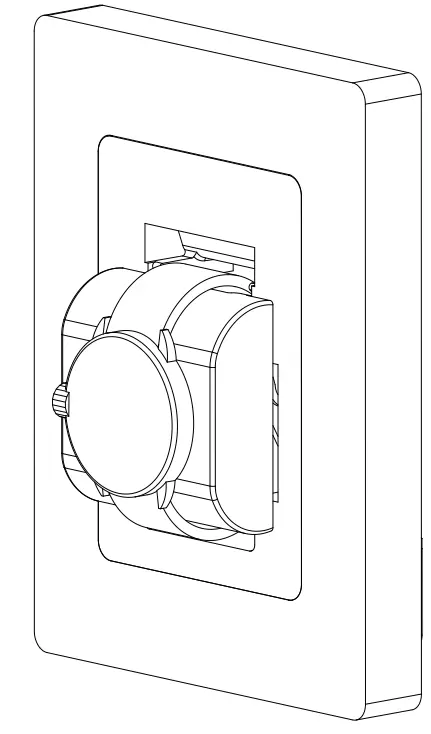

Single product carrier:
Dialock watch secured by invisibly installed
EFL 30 furniture lock.
The RFID antenna can be installed visibly or invisibly.

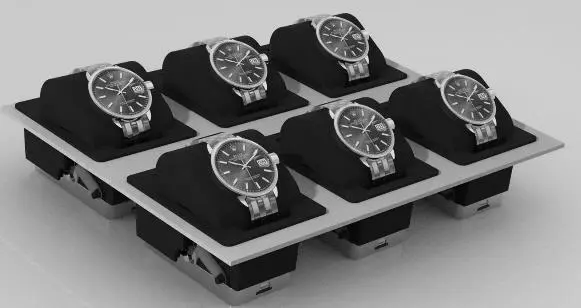

Mutiple product carriers:
Dialock watch secured by invisibly
built-in furniture lock EFL 3.
Can be controlled via one or two antennas.Up to four can be connected to an FT 200, expandable via MLA 6 or MLA 8.In the case of multiple applications, only the selected watch wearer is released by the push-to-open function. If the devices are not removed, they will automatically lock after the defined opening time.
Watch Wearer:
- Release via push-to-open function. If the watch is not removed, the system automatically re-locks after the defined opening time. To close, simply press.
- Suitable for all bracelet sizes in S, M and L (165 -180 mm) in flat 0°or 30°
- Plastic housing made of ABS. Customizable colors, upholstery of the watch cushion on request.
Product Safety Mechanism:
- Plastic housing made of ABS. Customizable colors, upholstery of the watch cushion on request.
- Compatible with EFL 3 for multiple applications and EFL 30 for single applications.
- Press to open and press to close. Quick and easy installation.
- High tensile forces for safety.
- Built-in or surface-mounted.
- Sustainable design
ASSEMBLY
Horizontal or vertical angle of 0°or 30°
Cutting and milling data
