Adjustable Dimm Switch for Touching

DIMMER TOUCH MOD.RD./D=12

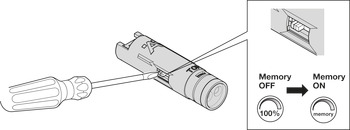

• Memory function can be switched off via integrated microswitch

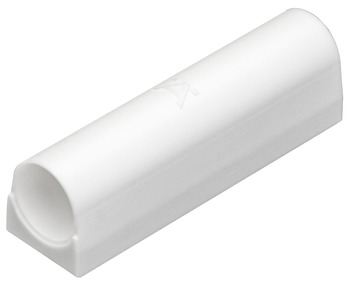

• Colour adjustment with supplied cover sleeves (button panel always black)

Material: Plastic

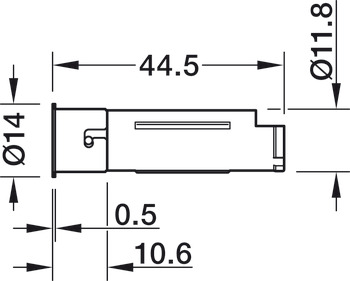

Dim. (Ø x L): 11.8 x 44.5 mm
Power Consumption: 0,10 W
Degree of protection: IP20
Installation: For mounting in drilled hole, or for plug fitting into housing
Installation note: Coloured cover sleeve suitable for drill hole in furniture and housing.

Order reference:
Please order lead with snap-in connector for modular switches separately. Length 2 m: Cat. No. 833.89.142

Supplied with:
1 dimm switch (delivery condition: memory function on)
3 cover sleeves (white, grey, black)
