Dimmable: no
Version: With door sensor, automatic shut-off after 3 minutes, light colour change at the touch of a button (2700 K/3000 K/4000 K/5000 K)
Memory function: Last state after power-off
Housing material: Aluminium
Diffuser material: Polycarbonate
Diffuser colour/finish: opal white
Other housing features: Plastic sensor and holders
Width: 16,00 mm
Height: 9,00 mm
Life time: L80/B10 >50,000 h, L70/B50 >80,000 h
Colour rendering index Ra: >92
Colour rendering index R9: >50
Energy efficiency class: F
Degree of protection: IP20
Installation: For screwing, For snap-in

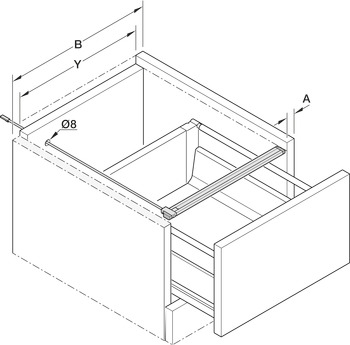

Installation note: Screw in 2 brackets for attaching the light to the cabinet side panels. Use 6 mm wide brackets with a side panel thickness of 19 mm, use 9 mm wide brackets with a side panel thickness of 16 mm.
Attach the supplied reflective adhesive pad to the inside of the drawer front panel to ensure the effectiveness of the sensor.
Cable length: 2.000,00 mm
Supplied with:
1 drawer light incl. 2 m lead
1 reflective adhesive pad
3 cable holders for glue fixing
Fixing material
