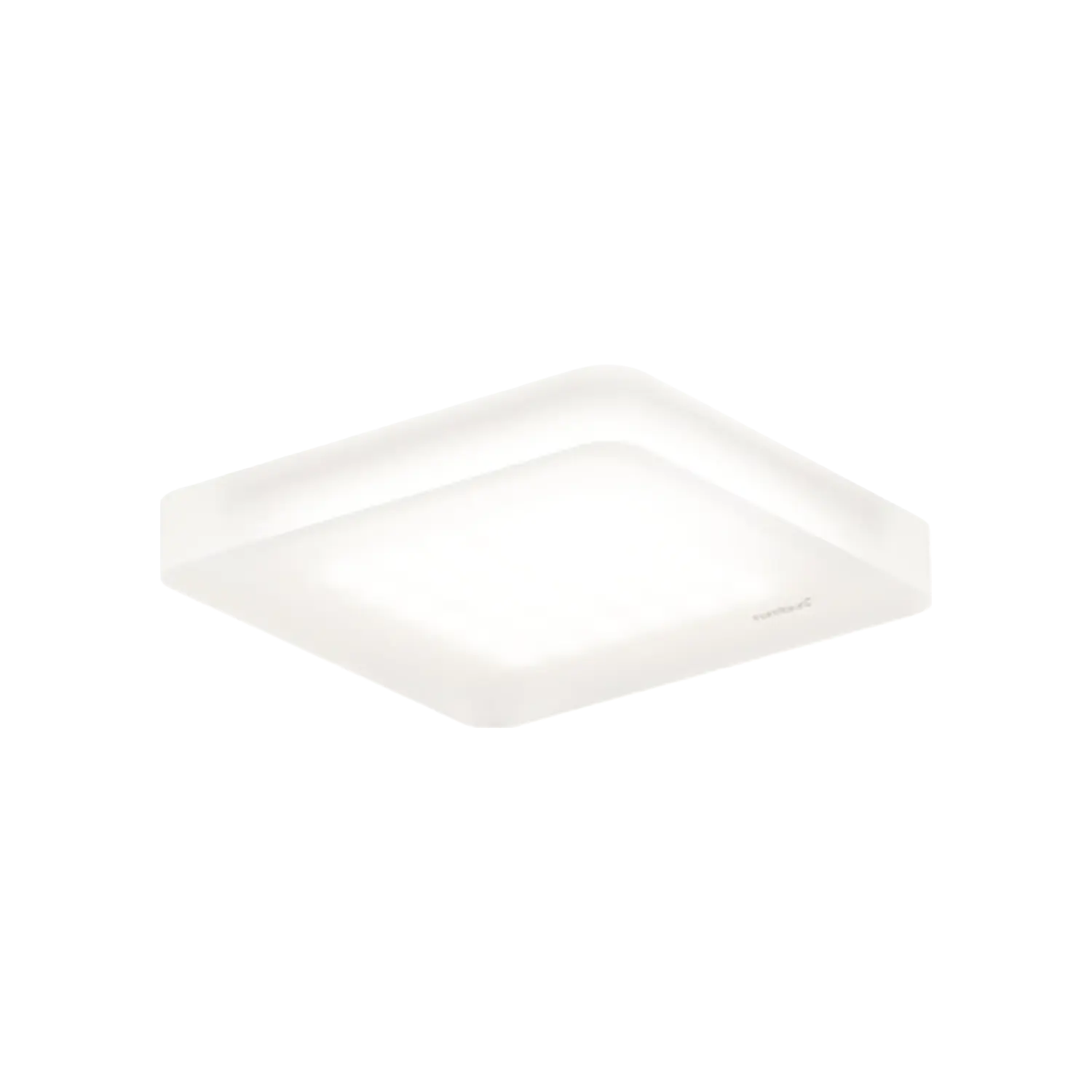

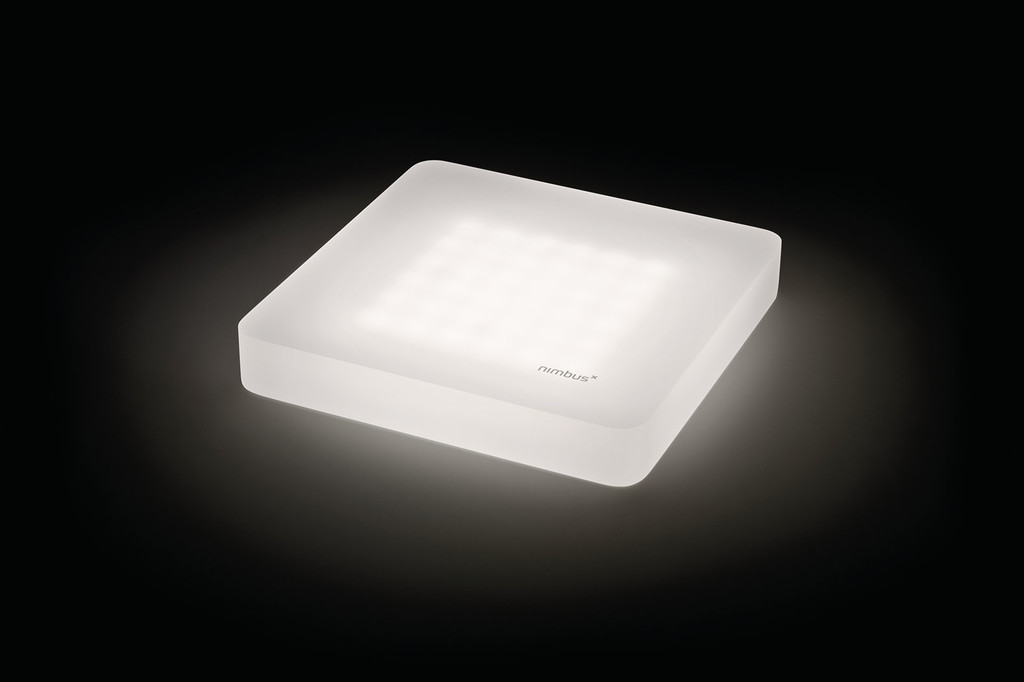

CUBIC Q 36 CONNECT TW

Item Code: 833.67.766

Details

CUBIC Q 36 CONNECT TW

More info

Absolute glare-free light

Free Connect Mesh app for Apple iOS® and Android™
completely wireless control via Connect Mesh



Model No. 562-309

  • Wireless technology: Bluetooth®, EasyPairing, Connect
  • Mounting position: Direct fixing
  • Housing colour/finish: transparent, matt

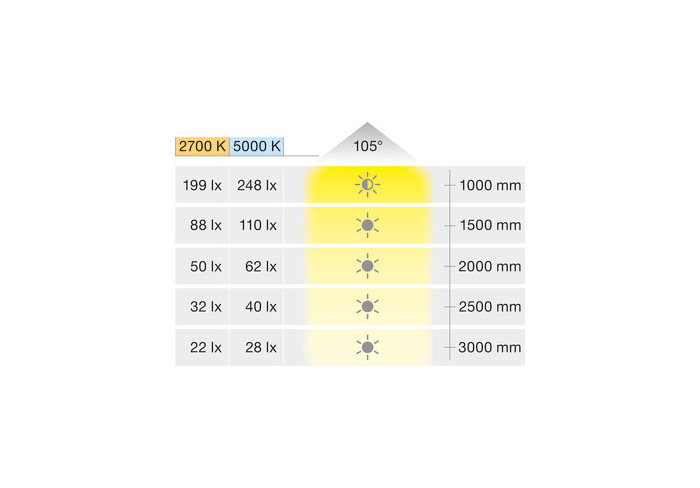

  • Refraction angle: 105.0 °
  • Colour temperature: 2700 – 5,000 K
  • Dimmable: yes
  • Area of application: Ceiling lighting
  • Housing material: Acrylic glas
  • Number of LEDs: 72
  • Life time: L80/B10 >50,000 h
  • >Colour rendering index Ra: 90
  • Degree of protection: IP20
  • Wattage: 7.5 W
  • Luminous flux: 555.0 lm
  • Luminous efficacy: 74.0 lm/W
  • Energy efficiency class: F
  • Installation: for screw fixing with magnetic mounting plate
  • Installation note: Light with permanent magnet for adhesion to installation ring.

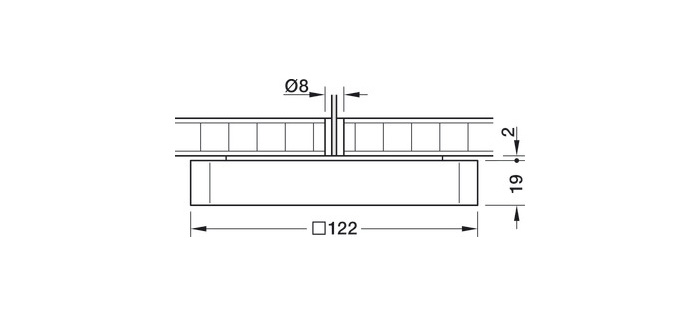

    Direct mounting: mounting ring for screw fixing to surfaces (drilling distance 79 mm)

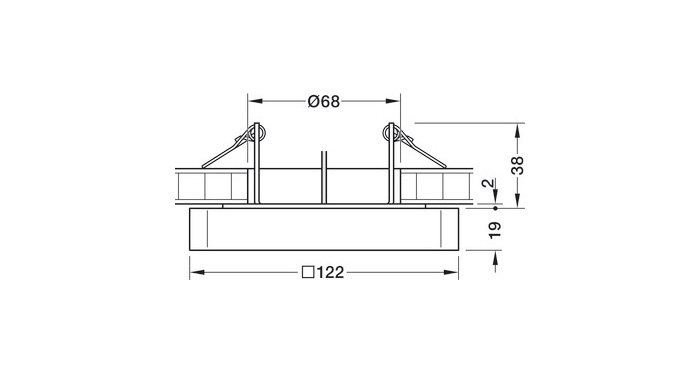

    Cavity installation: Installation ring with spring clips (drill hole ⌀ 68 mm)
  • Cable length: 200.0 mm
  • System supply: 24 V

Order reference

Colour control directly via remote controls from the Connect Mesh product range or Smartphone. Installation of the free Häfele Connect Mesh app required.
Important: Power supply of light provided via 2-pin leads.
Please order separately.
