Motion Sensor Switches

MOTION SENSOR/D=12/30-60-180SEC

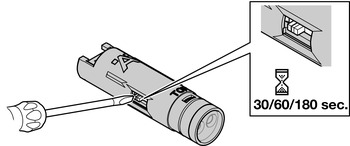

• Use DIP switch to toggle from 30, 60, and 180 seconds delay time
• Soft on/off

Version: Delay time adjustable
Color/finish: white/gray/black
Switching function: Soft on/off, automatically
Memory function: No

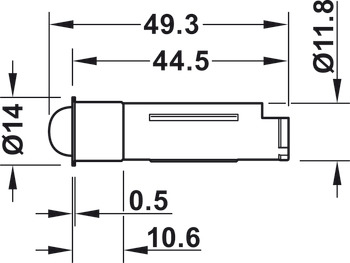

Drill hole Ø: 12.00 mm
Length: 44.50 mm
Sensor range: 0 – 3,000 mm
Material: Plastic
Power Consumption: 0.10 W
Horizontal sensor angle: 90,00 °
Vertical sensor bracket: 120,00 °
Degree of protection: IP20
Installation: For mounting in drilled hole, or for plug fitting into housing

Order reference:
Replaces 833.89.129 and 833.89.148.
Order 2 m (78 3/4") lead for modular switches separately.
Order optional white, black, or gray surface mount housing separately

Supplied with:
1 adjustable motion sensor switch
3 cover sleeves (white, gray, black)
