OneCable Spot 9 Linear

Black, 80°
White, 80°
Black, 40°
White, 40°

Item Code: 833.68.327

Details

OneCable Spot 9 linear 40°

More info

  • Nominal voltage: 24.0 V
  • Light colour: Warm white to cool white
  • Colour temperature: 2700 – 5,000 K

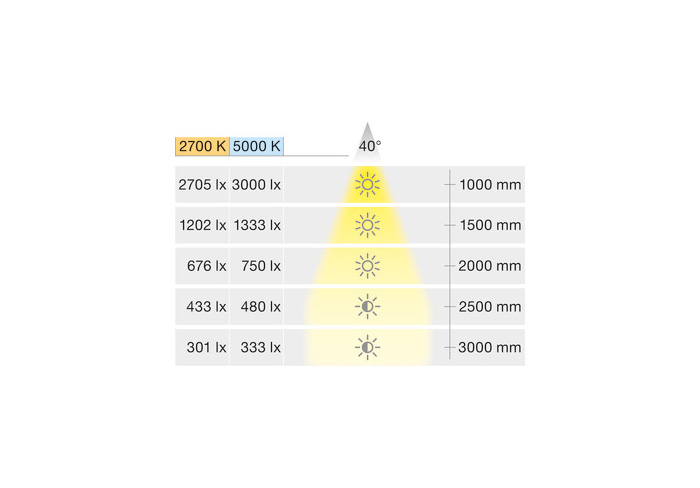

  • Luminous flux: 1,100.0 lm
  • Luminous flux II: 1,220.0 lm
  • Wattage: 16.0 W
  • Luminous efficacy: 68.0 lm/W
  • Luminous efficacy II: 76.0 lm/W
  • Colour rendering index Ra: 90
  • Dimmable: yes
  • Housing material: Plastic
  • Other housing features: Frame: plastic, black

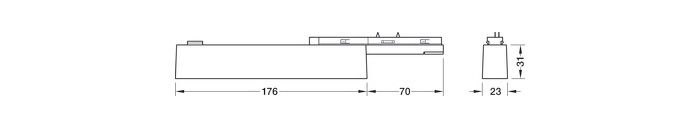

  • Length: 176.0 mm
  • Width: 23.0 mm
  • Height: 31.0 mm
  • Number of LEDs: 9
  • Life time: L80/B10 >50000 h
  • Installation: Separable clamp fixing
  • Installation note: Press in contact blade straight and without jamming. Risk of injury: sharp contact blades.
  • Do not touch reflectors!
    With vertical wall mounting, a straightening connector must be attached as a mechanical fuse directly to the light in the direction of the floor.
