Sliding Compound Mitre Saw KS 120 REB-SET-UG

Rail Forward Design for increased precision and compact footprint

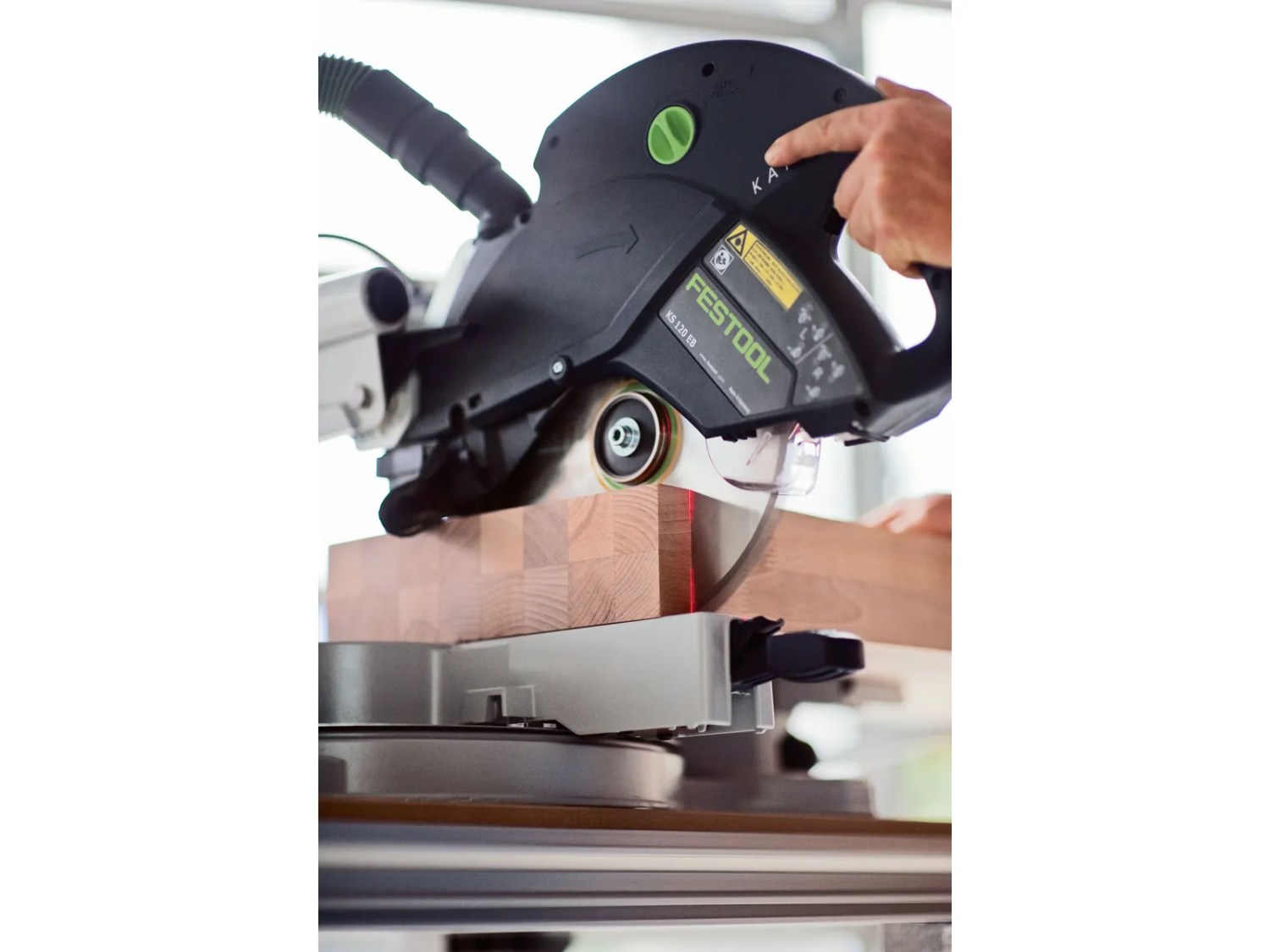

Dual-line laser for accurate cut alignment from both sides
Micro-adjustable bevel angle with front rotary knob
FastFix system for quick and safe blade changes
Multi Material Control electronics for speed adjustment and temperature monitoring
High-efficiency dust extraction (up to 91%) with antistatic function
Magnesium alloy base for lightweight yet durable construction

Specifications

Power Consumption: 1,600 W
Voltage: 220–240 V / 50–60 Hz
No-load Speed: 1,400 – 3,400 rpm
Saw Blade Diameter: 260 mm
Blade Dimensions: 260 × 2.5 × 30 mm
Mitre Angle: 50° Left / 60° Right
Bevel Angle: 47° Left / 47° Right
Max Cutting Depth: 305 × 88 mm (90°)
Weight: approx. 21.5 kg
Dimensions: 661 × 475 × 430 mm
Dust Extraction Connection: Ø 27 / 36 mm

Cutting large skirting boards and crown moldings (up to 120 mm)
Precise miter and bevel cuts for interior finishing
Ideal for installation and assembly work requiring high accuracy
