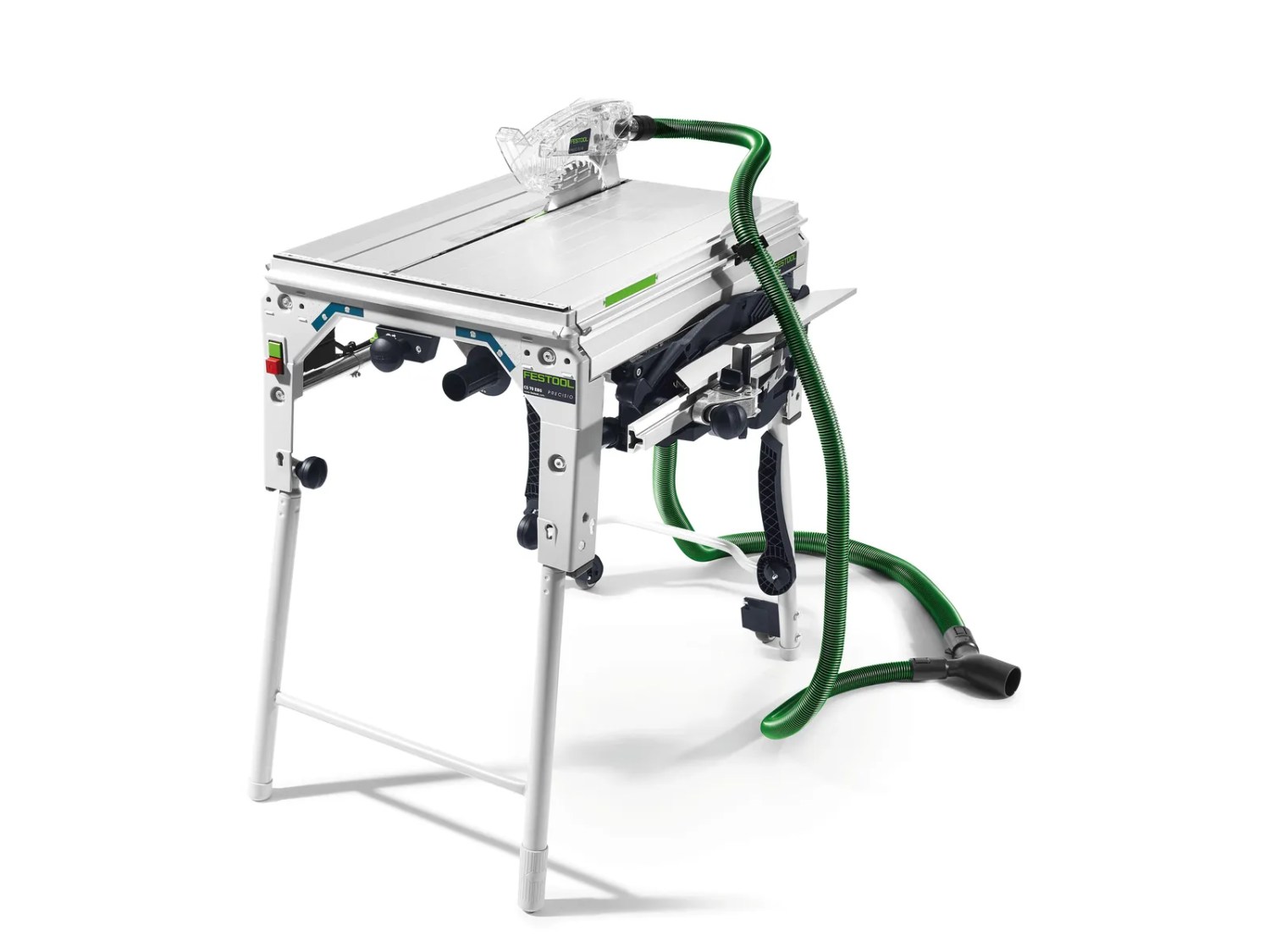

Trimming Saw Precision CS 70 EBG

Key Features
TH:

Precise tilt and height adjustment system.
Used in conjunction with Festool guide rails for precise long cuts.
The CLEANTEC vacuum system reduces dust and improves visibility.
Multi Material Control adjusts the speed according to the material.
Robust design, suitable for heavy-duty work.

EN:

Precise height and tilt adjustment
Compatible with Festool guide rails for accurate rip cuts
CLEANTEC dust extraction for clean working environment
Multi Material Control electronics for speed adjustment
Robust design for heavy-duty applications

Specifications (TH + EN Combined)

Power input: 2,200 watts | Power consumption: 2,200 W
Voltage: 220–240 Volts / 50–60 Hertz
Saw blade diameter: 225 mm
Arbor Size: 30 mm
Maximum cutting height: 70 mm
Rip Cutting Width: 430 mm
Cross-cutting width: 830 mm (with sliding table)
Saw blade tilt angle: -2° to 47°
No-load speed: 4,200 rpm
Weight: approximately 37 kg
Machine dimensions: 690 × 500 × 340 mm

Main Applications

TH:

Cut lengthwise and crosswise in installation work.
Cut beveled edges and cut a variety of materials.
Suitable for high-precision and heavy-duty applications.

EN:

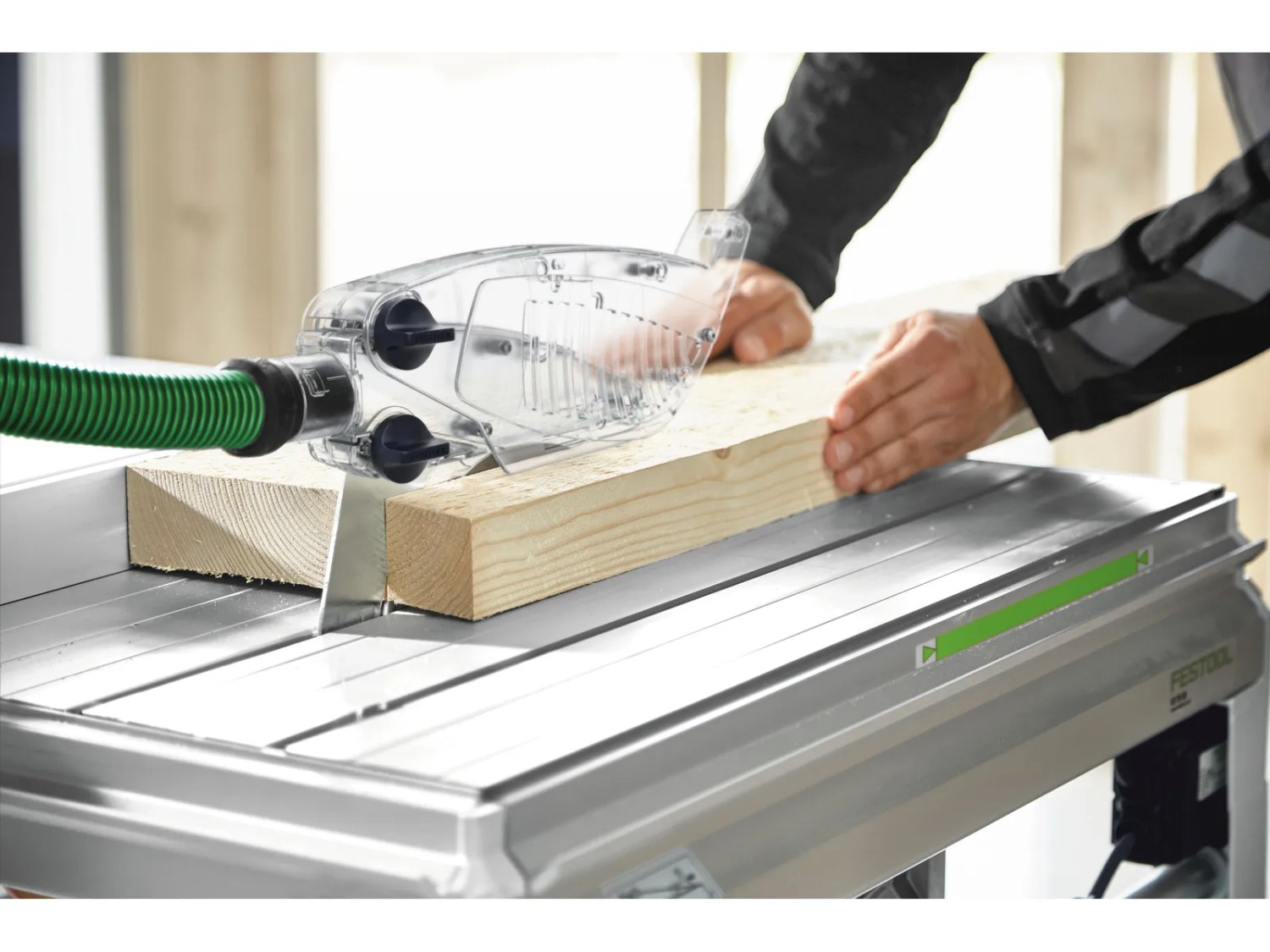

Rip and cross cuts for installation work.
Angled cuts and multi-material applications
Ideal for high-precision and heavy-duty work
