- The light emits from the edge of the ribbon, no LED dots visible
- For recessed installation in a 4 mm (3/16") wide x 10 mm (3/8") deep channel
- Flexible silicone allows for curved applications (radius min. 30 mm (1 3/16")
- Mounts flush with the panel
สอบถาม
- Hafele Products
- Strip Lights

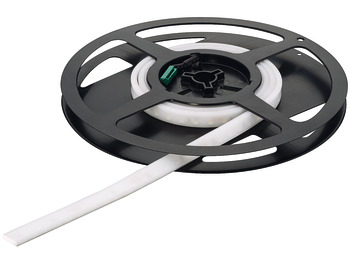

LED Strip Light With Silicone Sleeve 4 x 10 mm
Features
Item Code: 833.75.266
Details
More info
- Nominal voltage: 24.00 V
- Strip length: 3.00 m
- Height (inch): Silicone sleeve: (5/32")
- Width (inch): Strip: (5/16"); Silicone Sleeve: (3/8")
- Dimmable: Yes

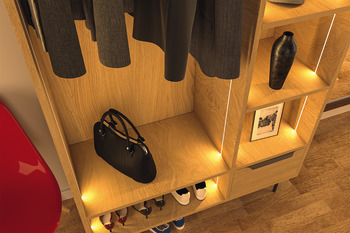

- Area of application: Display cabinets, Bend connectors, Storage spaces
- Material: Silicone
- Color: White

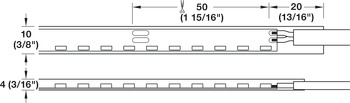

- Section length: 50.00 mm
- Contact surface length: 6.00 mm
- Silicone tube finish: Matte
- Silicone tube width: 10.00 mm
- Silicone hose height: 4.00 mm
- Wattage/m: 9.60 W
- Routing width: 4.00 mm
- Routing depth: 10.00 mm
- Minimum bending radius: 30.00 mm
- Degree of protection: IP44
- Installation: For recess mounting in milled groove
- Installation reference: For embedding in routed channel
