Feature
• 4 methods of unlock.
• Remote unlock via Häfele Smart Living (using Bluetooth).
• One set of administrator data for each element: fingerprint, key card, and password.
• Store up to 100 sets of general users data such as: fingerprint, key card, and password.
• Capable of connecting with Multimode gateway 499.21.220 for remote unlocking and other function commands.

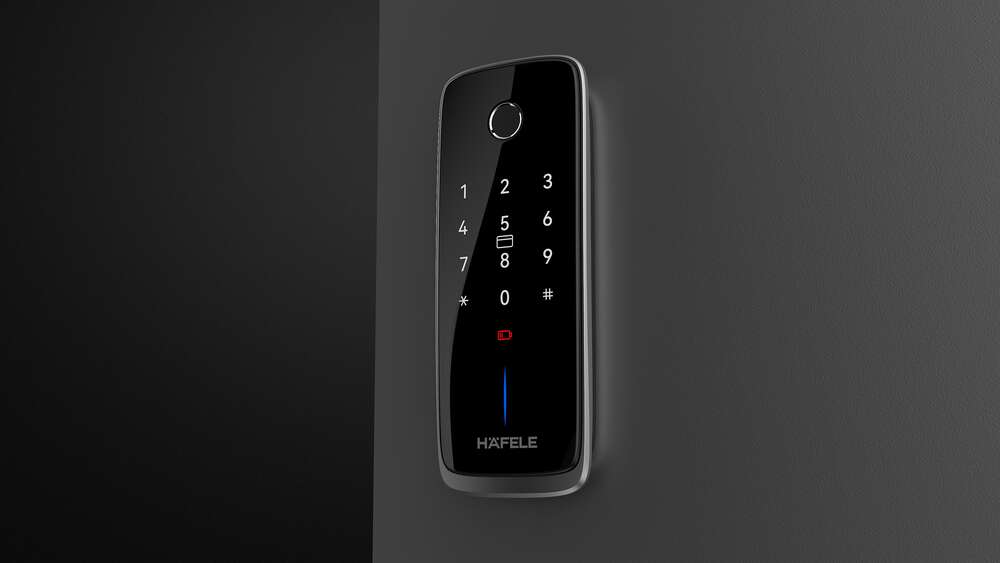

• Outside module is designed to resemble a door handle.
• Precise locking mechanism with electric door hook.
• Durable door hook, designed for both swing and sliding door.
• Easy to control and configure via Häfele Smart Living application.
• User instruction voices available in male and female version.
• Privacy function to restrict access from the outside (Privacy mode) and a function to allow passage without unlocking (Passage mode).
• Power unit: 4 of 1.5 volt manganese alkaline AA battery (Please order separately).
• In case of battery outage, allow charging via USB.
• Can be installed on both swing and sliding door.
• Can be installed in both right and left door open type.
• Only installable on door frames ranging from 30–90 mm.
• Can be installed on 100 mm door frames.
• Environmental protection rating: Outer module IP65, Inner module IP53
Dim. (WxHxL)
• Outside module: 65 x 165 x 17 mm.
• Inside module: 74 x 175 x 64 mm.
Components

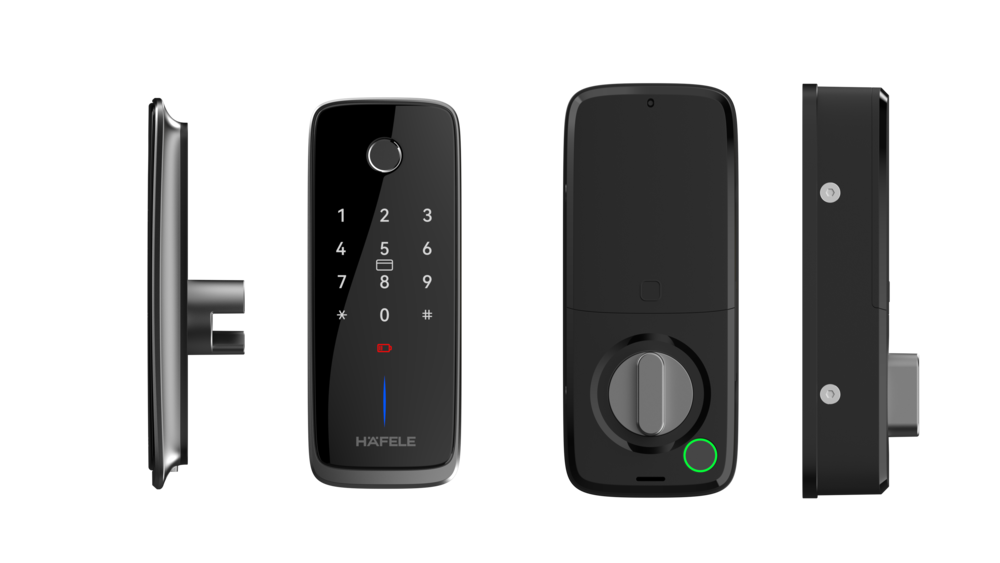

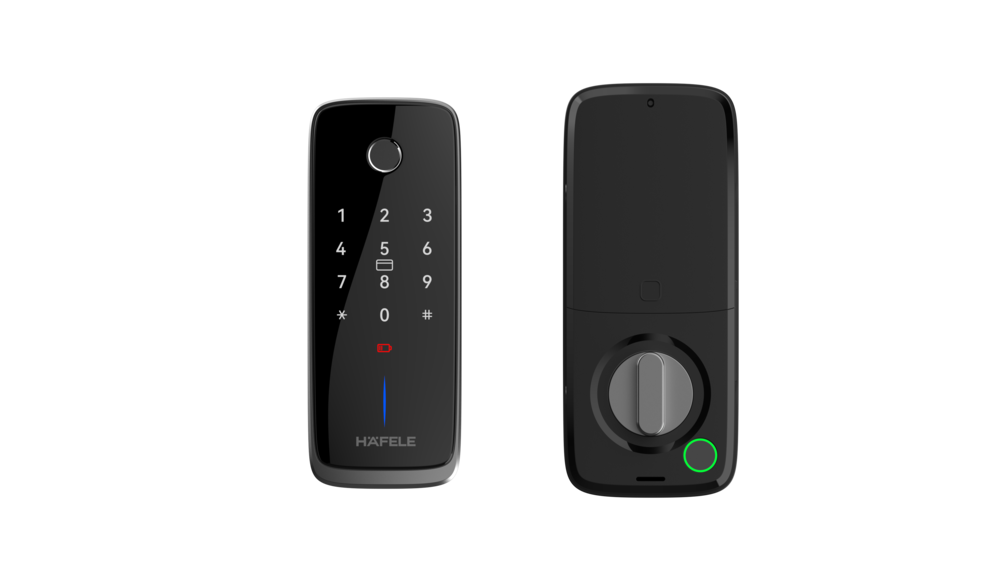

• 1 set of outside and inside module
• 2 sets of striking plate
• 1 set of installation kit
• 2 key cards and 2 keychain key cards
• 1 user manual
• 1 drilling template
